一、Description

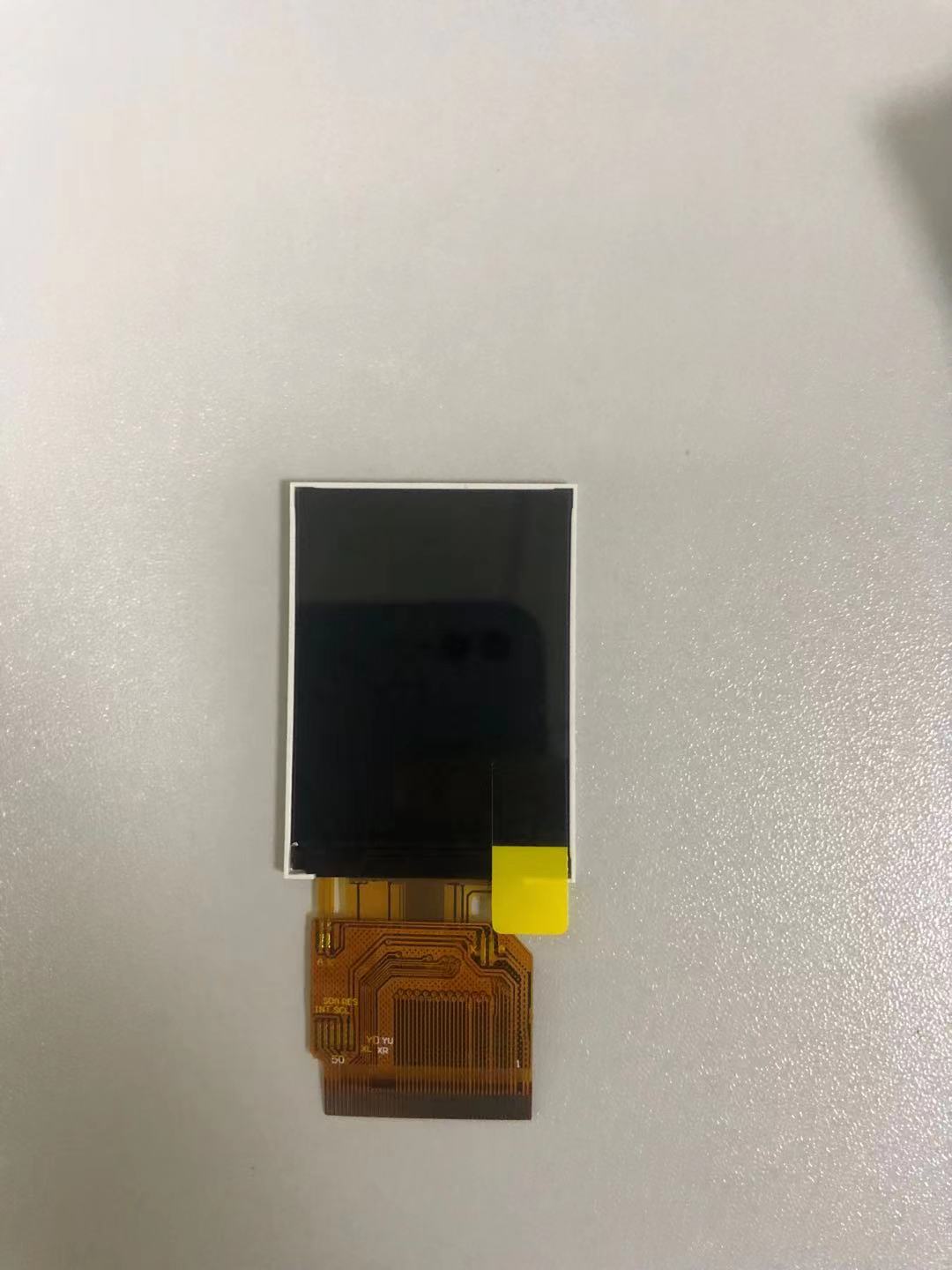

ELSUN 2.0″ inch 240*320 TFT module display supply very stable.
This 2.0″ inch supports SPI/RGB/MCU interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.
In addition, the 2.0″ inch TFT display module brightness is 500 nits, and this 2.0″ inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.
Powered by the ST7789V controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.
Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
- Feature
- Stable supply
- 500brightness/High brightness/Sunlight readable/Outdoor
- 240*320/QVGA
- All/Full/Wide/IPS viewing angle
- Multi-interface：SPI/RGB/MCU
- Can custom resistive touch and capacitive touch
- Hand-held device，Instrument and meter

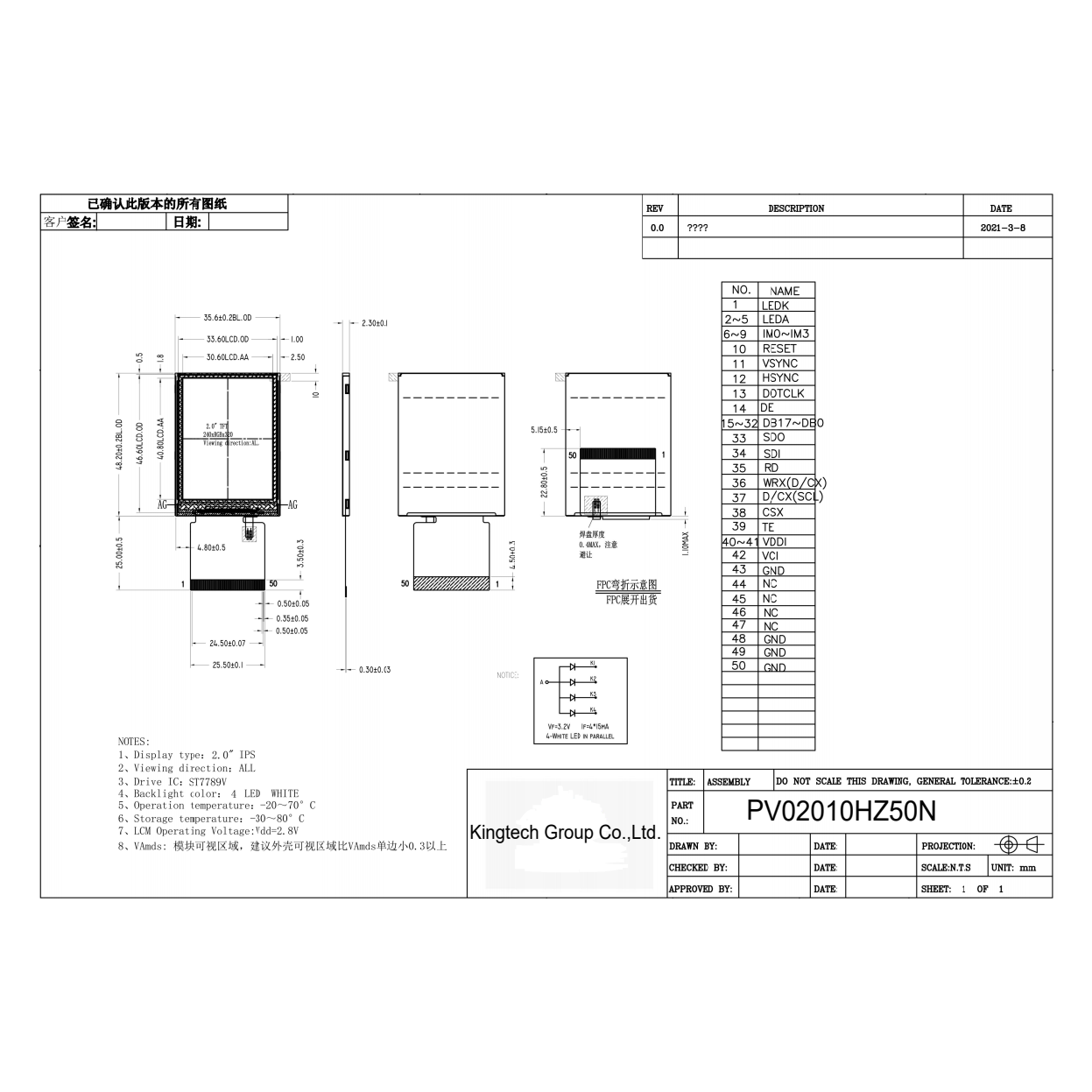

- Product specification
| Item | 2.0 inch 240*320 SPI/RGB/MCU IPS lcd display |
| Model No. | PV02010HZ50N |
| Resolution | 240*320/QVGA |

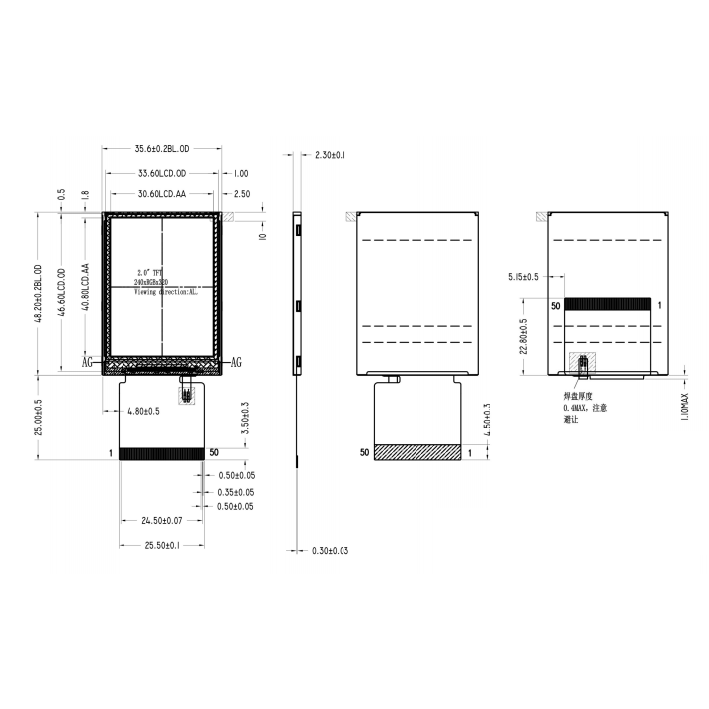

| Outline Dimension (mm) | 35.60*48.20*2.30 |
| Active Area (mm) | 30.60*40.80 |
| Viewing Angle | IPS |
| Brightness | 500nits |
| Interface | SPI/RGB/MCU |
| Backlight | 1*4 LED |
| Driving IC | ST7789V |
| PIN No. | 50 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
2、Application
The 2.0 inch 240*320 TFT can be used for Smart home, Medical, hand-held device, industrial Instrument and meter, and others
