2.4″ inch All 240*320 LCD display for medical, E-bike, smart home, hand-held device, industrial

Elsun 2.4inch IPS/240*320/MCU/640nits/-20~+70/CTP(Optically bonded) supply very stable. This 2.4 inch supports MCU interface. In addition, the 2.4″inch TFT module brightness is 640nits, support outdoor applications. This 2.4″inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the 2.4″inch display has exsiting capacitive touch. And Elsun also can custom the touch according to customer’s requirements.

1、Description

This 2.4″ inch supports MCU interface ,enables fast and efficient communication and smooth data transfer and real-time updates.

In addition, the 2.4″ inch TFT display module brightness is 640 nits, support outdoor application . Such as E-bike, inter phone, outdoor measuring instrument

And this 2.4″ inch screen is All viewing type and powered by the ILI9341V controller. This TFT LCD display delivers exceptional performance and reliability.  The controller optimizes the display’s functionality, ensuring smooth operation and accurate rendering of images and graphics. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.

Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

2、Feature

1. Stable supply
2. 240*320 / QVGA
3. 640brightness/Sunlight readable
4. Can custom resistive touch and capacitive touch
5. Medical, hand-held device, industrial
6. All/Free/Wide viewing angle/IPS type

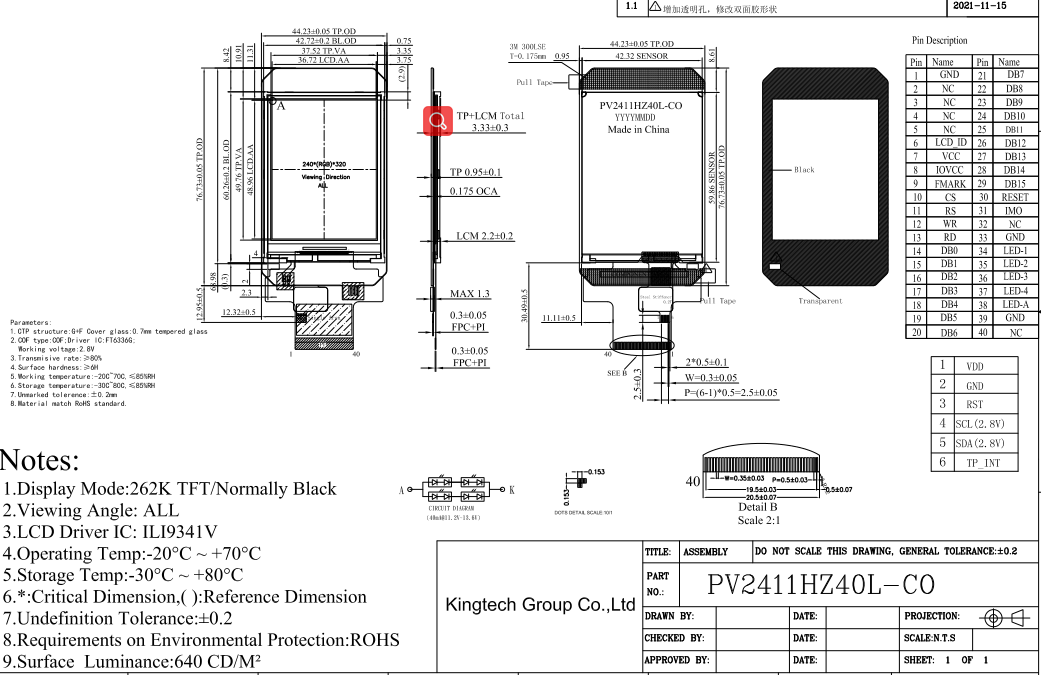

3、Product specification

4、Application

This 2.4inch display is designed especially for hand-held device, industrial,E-bike , smart home Medical , Hand-held, Industrial ,POS machine

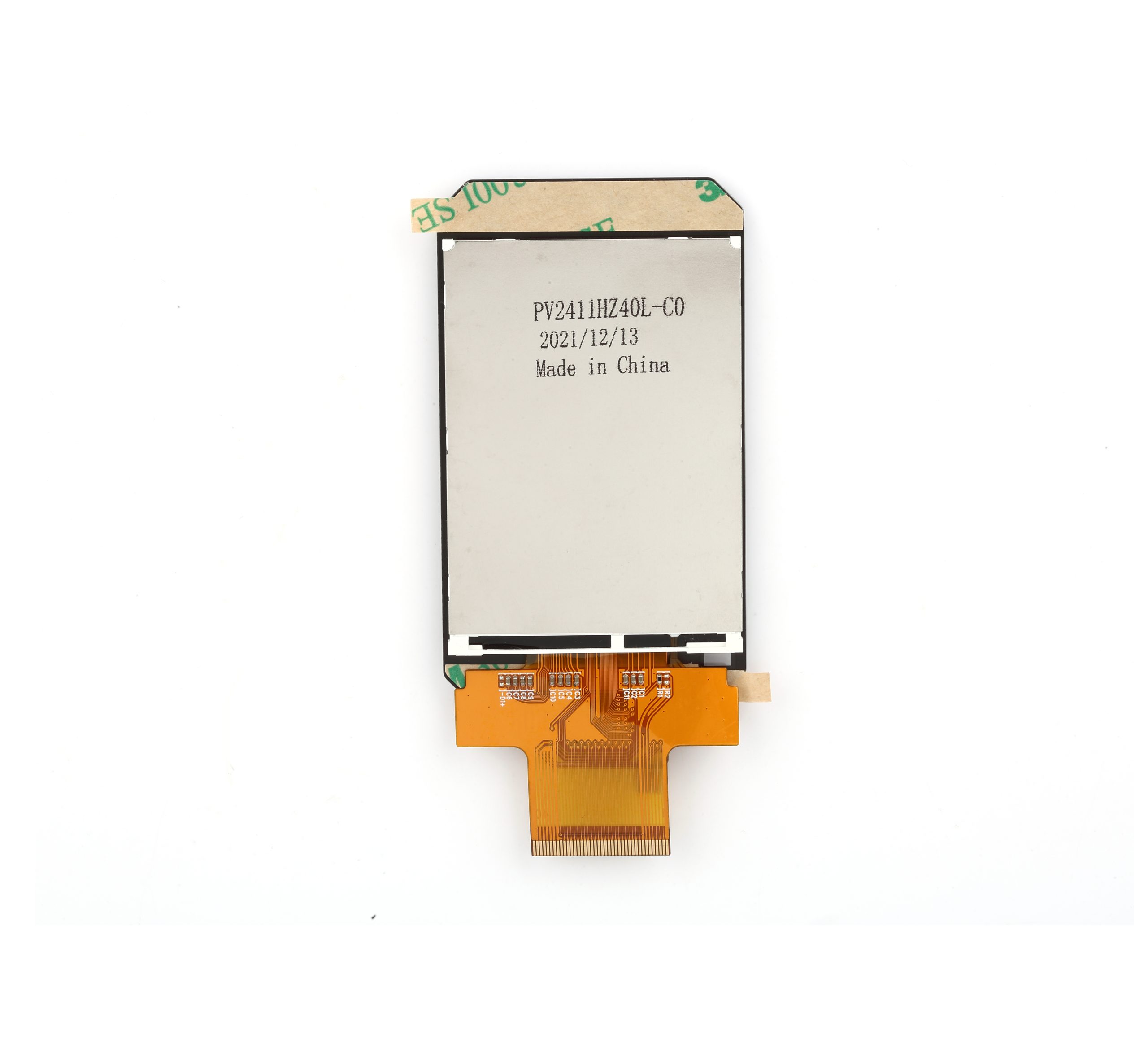

3. PV2411HZ40L-CO
