Elsun 2.76inch IPS round display/480*480/RGB24bit/250nits/-20~+70 supply very stable. This 2.76 inch display supports RGB 24bit interface. In addition, the 250nits brightness and 1000nits are available , and this 2.76inch screen is All/Free/Wide viewing angle/IPS type.

For the touch part, the 2.76inch circular display has capacitive touch, but we also can custom the touch according to customer’s requirements.

1、Description

ELSUN 2.76 inch 480*480 TFT module display supply very stable.

This 2.76 inch supports RGB24bit interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.

In addition, the 2.76 inch TFT display module brightness is 250 nits, and this 2.76 inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.

For the HDMI board, we also can develop the HDMI board for you.

Powered by the ST7701S controller, this TFT LCD display delivers exceptional performance and reliability. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

2、Feature

Round display
Stable supply
250brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial

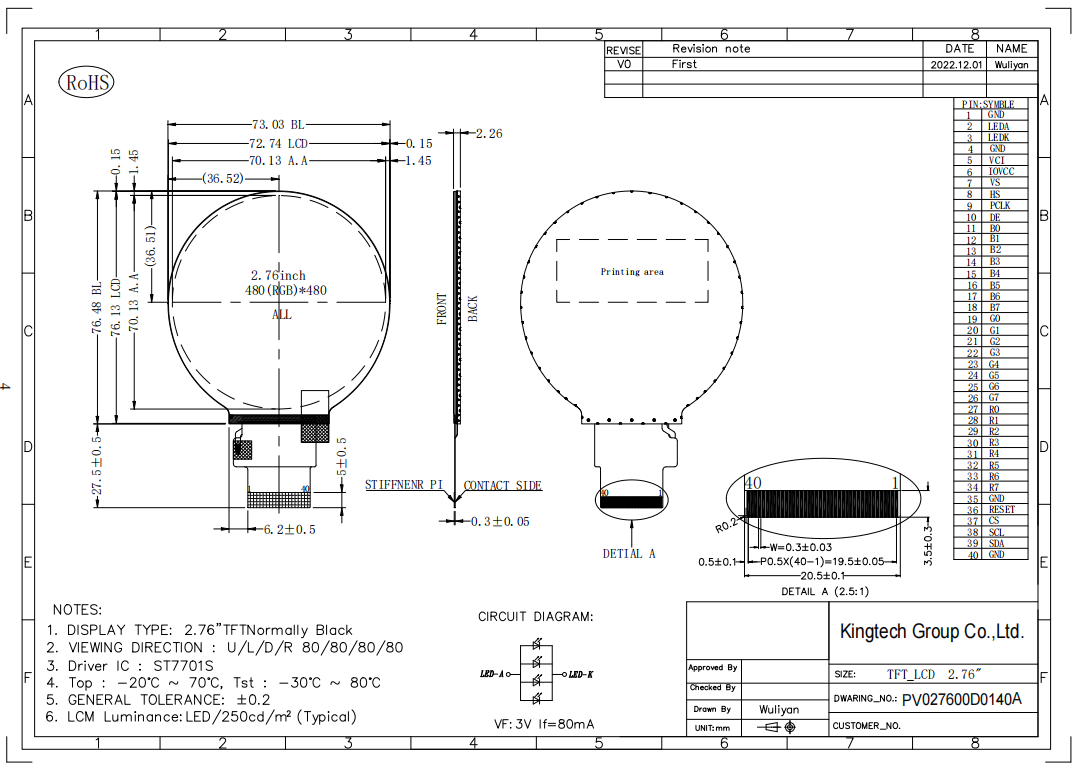

3、Product specification

这里统一放技术参数表

4、Application

This small 2.76 inch 480*4800 round TFT display is designed especially for wearable devices and smart gadgets, And it also can be used for E-Bike, Medical, hand-held device, industrial or others, smart-home.

3. PV027600D0140A
