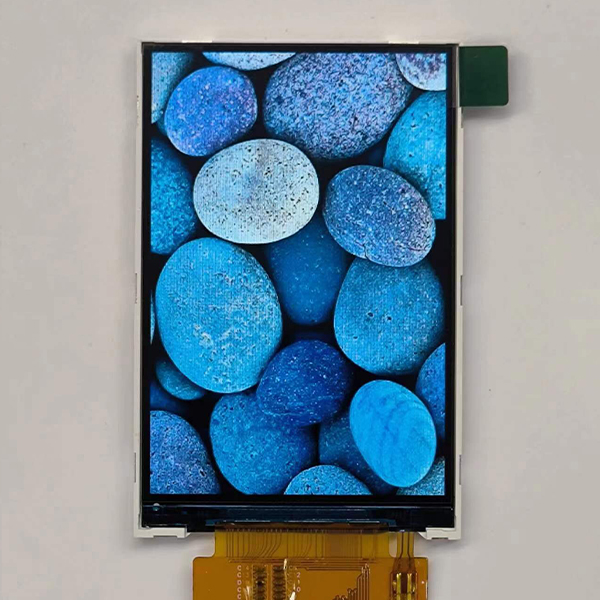

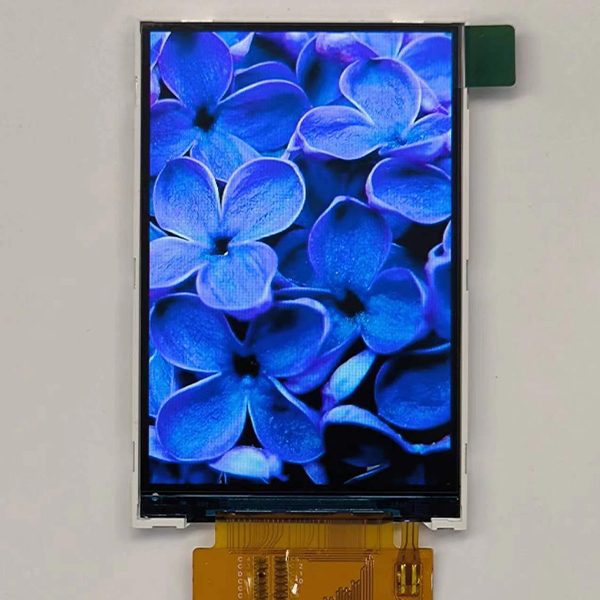

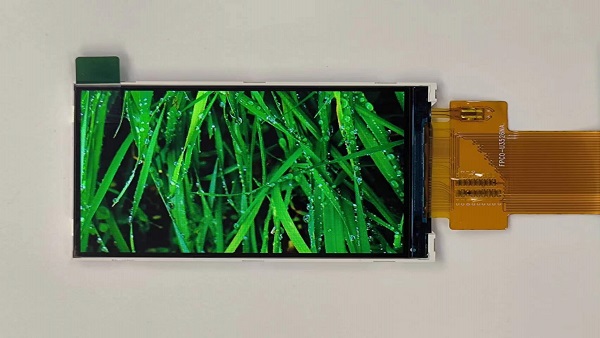

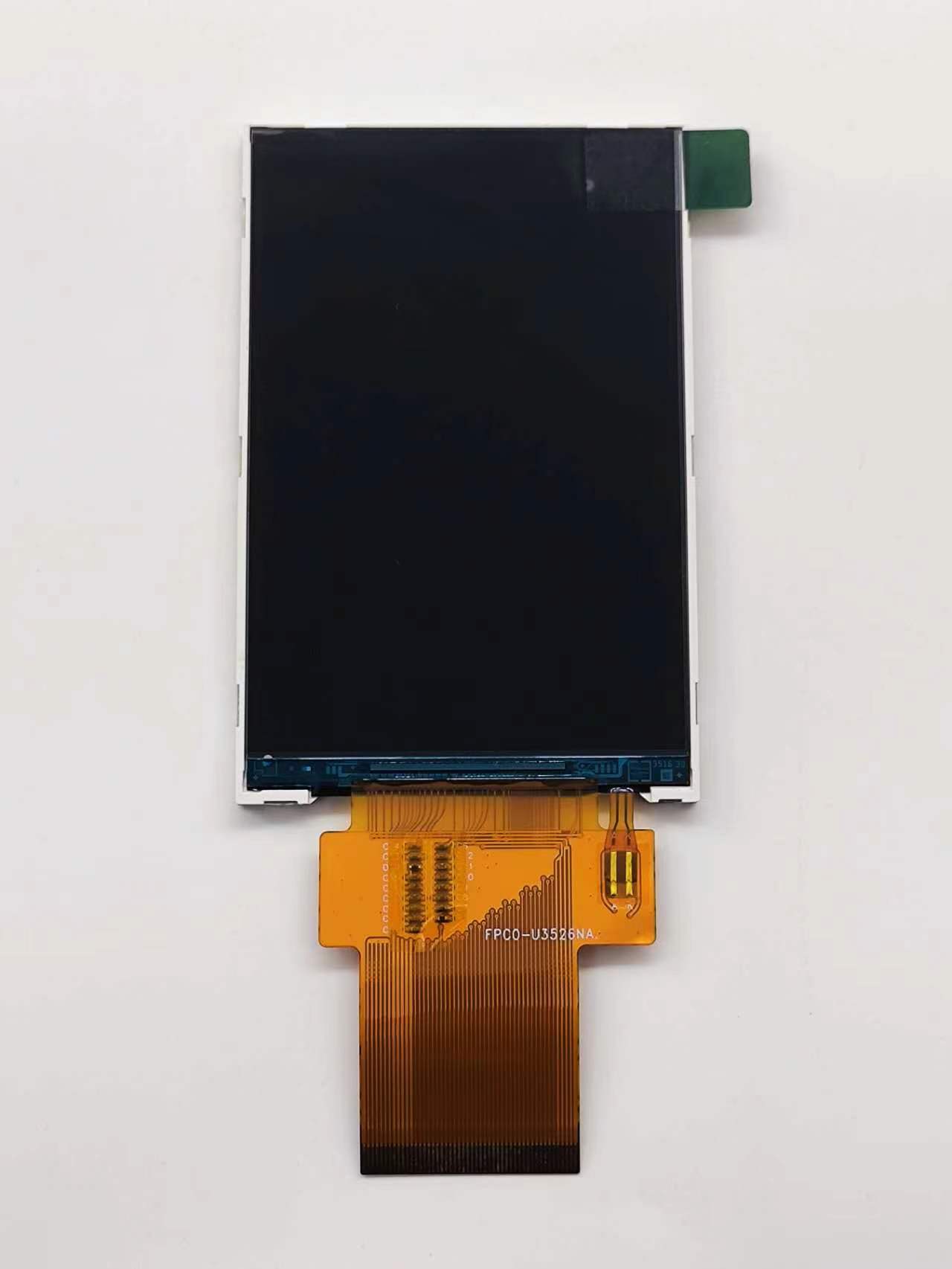

PV035HV-CIC50011-LO is a 3.5″ inch 320*480 IPS round display from Elsun.
This TFT display provides a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ILI9488 controller,and it support capacitive touch.
The material is RoHS-compliant.
1、Description
ELSUN 3.5″ inch 320*480 TFT module display supply very stable.
This 3.5″ inch supports Multiple (MCU,SPI,RGB）interface.,to be used in a wide range of devices,and enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.
In addition, the 3.5″ inch TFT display module brightness is 1700 nits, ensures that it will display better outdoors. Of course, it also supports 500 brightness and 1000 brightness, so you have a variety of choices.And this 3.5″ inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.
Powered by the ILI9488 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.
Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
2、Feature
- Stable supply
- 1700brightness/Sunlight readable/High brightness
- CTP and RTP are available ,can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
3、Product specification
| Item | 3.5inch IPS/320*480/8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB/1000nits/-20~+70 |
| Model No. | PV035HV-CIC50011 |
| Resolution | 320*480 |
| Outline Dimension (mm) | 54.46*82.94*3.65 |
| Active Area (mm) | 48.96*73.44 |
| Viewing Angle | All |
| Brightness | 1000 |
| Interface | 8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB |
| Backlight | 5*2LED |
| Driving IC | ILI9488 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike,Medical, hand-held device, industrial， |
4、Application
This display is widely used for Ebike, smart home, hand-held device, Medical
