3.5″ inch All 320*480 LCD display for Smart watch and wearable, medical, Ebike, smart home, hand-held device, industrial, EV charger, Medical

Elsun 3.5inch IPS/320*480 MCU/SPI/RGB/350nits/-20~+70

This 3.5 inch display support multiple interface. In addition, the 3.5″inch TFT module brightness is 350nits, and this 3.5″inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the 3.5″inch circular display has exsiting capacitive touch, but Elsun also can custom the touch according to customer’s requirements.



1、Description

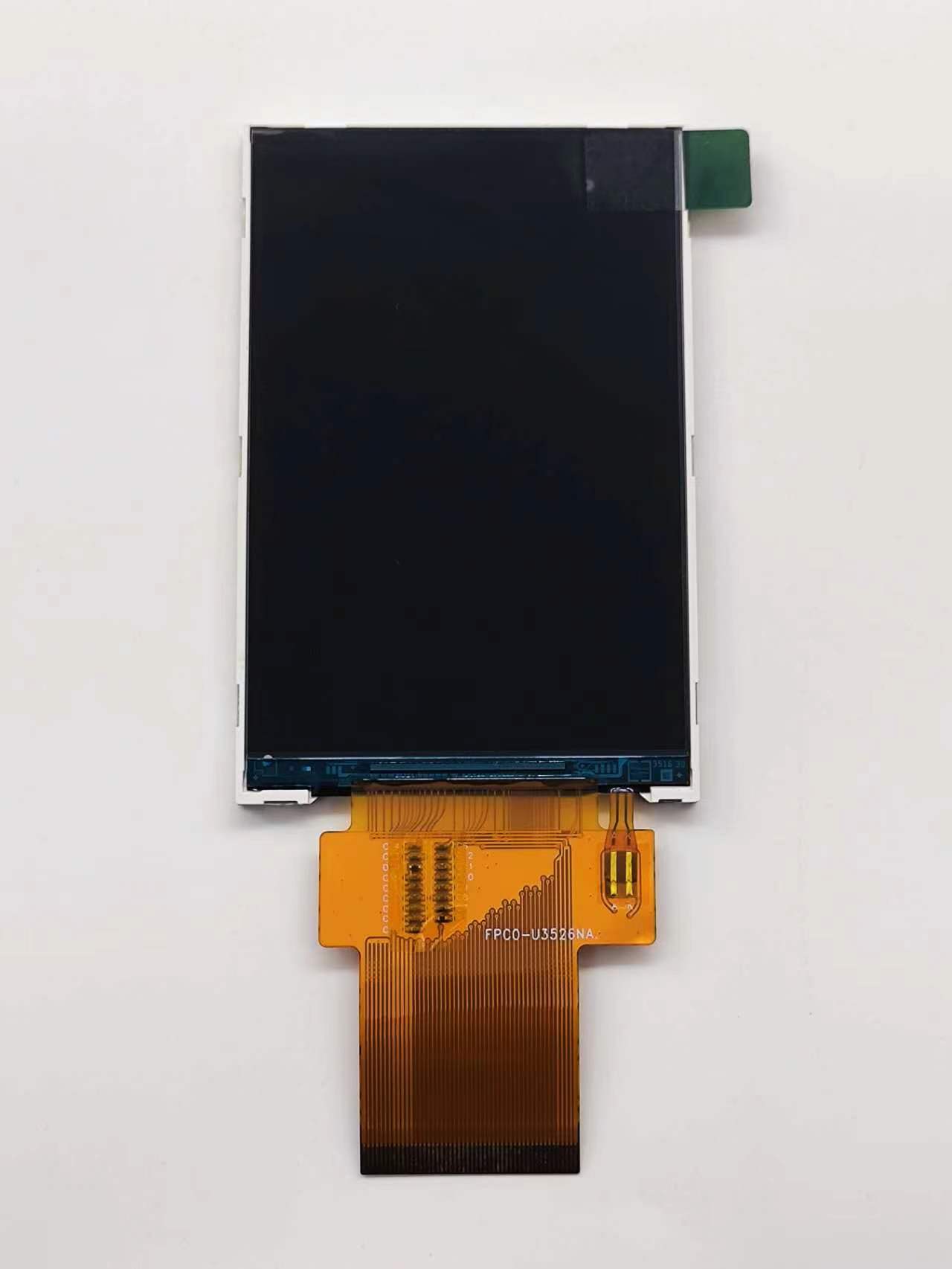

ELSUN 3.5″ inch 320*480 TFT module display supply very stable.

This 3.5″ inch supports multiple interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.

In addition, the 3.5″ inch TFT display module brightness is 350 nits, and this 3.5″ inch screen is All viewing type. For the touch part, we have standard capacitive touch panel and resistive touch panel.

Powered by the ILI9488 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.

Our displays are all RoHS compliant and adhere to strict environmental and safety standards.



2、Feature

1. Bar type display/Round display
2. Stable supply
3. 350brightness/Sunlight readable/High brightness
4. Wide working temperature -20~70
5. Can custom resistive touch and capacitive touch
6. Medical, hand-held device, industrial



3、Product specification

Item	3.5inch IPS/320*480/8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB/300nits/-20~+70/CTP(Optically bonded)
Model No.	PV035HV-CINA5007-CO
Resolution	320*480
Outline Dimension (mm)	54.66*84.18*3.65
Active Area (mm)	48.96*73.44
Viewing Angle	All
Brightness	300
Interface	8-/ 9-/16-/18- 8080-MCU 4-lines / 3-lines SPI + 16-/18-bit RGB
Backlight	1*6LED
Driving IC	ILI9488
Operating Temperature	-20~70
Storage Temperature	-30~80
Touch screen	Can custom resistive and capacitive touch screen
Application	E-Bike,Medical, hand-held device, industrial，



4、Application

This display is widely used for Ebike, smart home, hand-held device, Medical



PV035HV-CINA5007-CO_V00_20200824
