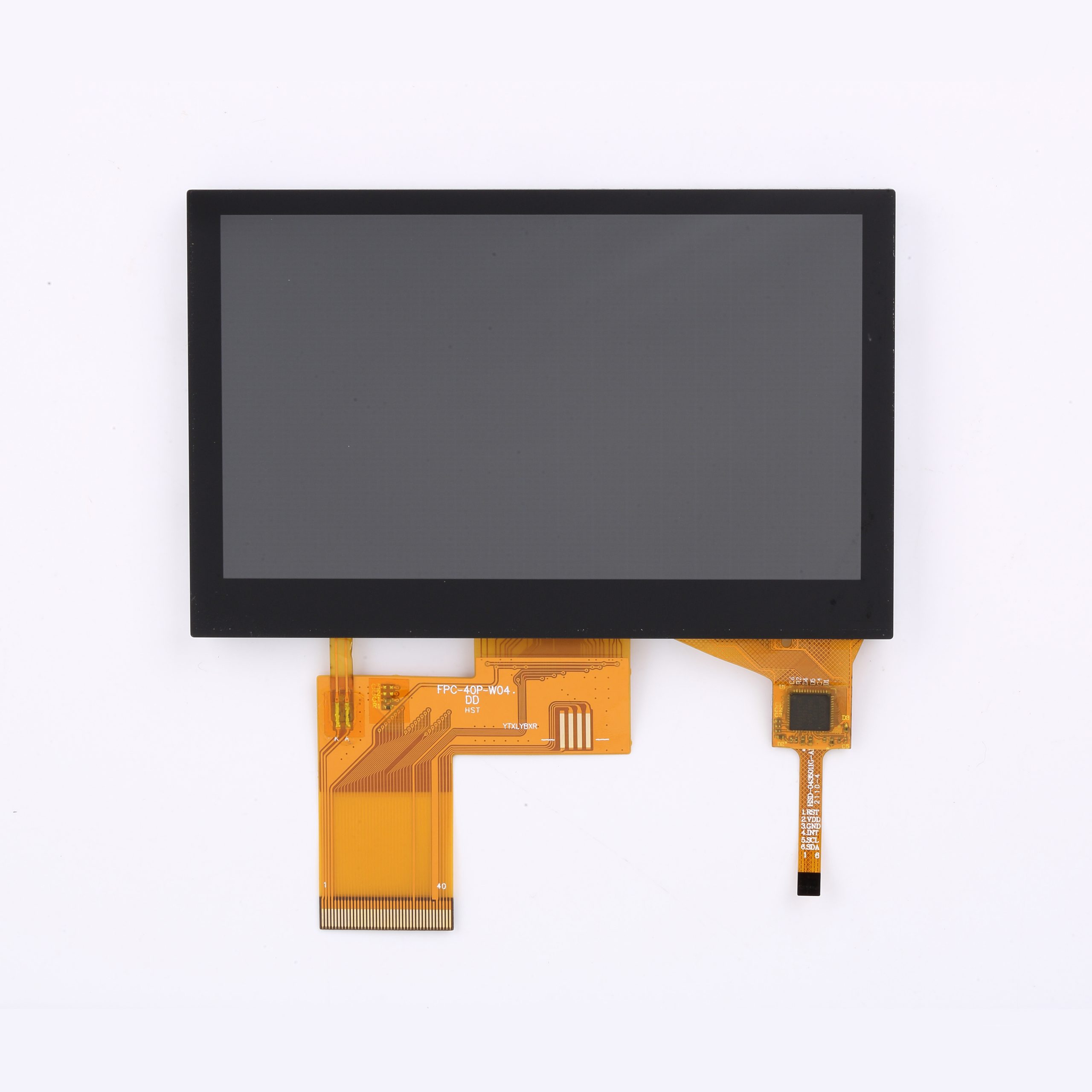

PV043014HZ40P-CT1 is a 4.3″ inch 480*272 IPS round display from Elsun. The 4.3″inch TFT module brightness is 640nits. And this 4.3″inch screen is All/Free/Wide viewing angle/IPS type, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in ST7283 controller,and it support capacitive touch.
The material is RoHS-compliant.
1、Description
ELSUN 4.3″ inch 480*272 TFT module display supply very stable.
This 4.3″ inch supports RGB interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.
In addition, the 4.3″ inch TFT display module brightness is 640 nits, and this 4.3″ inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.
Powered by the ST7283 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.
Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
2、Feature
- Stable supply
- 640brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
3、Product specification
| Item | 4.3inch IPS/480*272/RGB/640nits/-20~+70/CTP(Tape bonded) |
| Model No. | PV043014HZ40P-CT1 |
| Resolution | 480*272 |
| Outline Dimension (mm) | 105.5*67.2*5.02 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 640 |
| Interface | RGB |
| Backlight | 8*2LED |
| Driving IC | ST7283 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike,Medical, hand-held device, industrial， |
4、Application
The 4.3 inch 480×272 6 o’clock LCD module can be used for agricultural equipment, medical device, smart home etc.
