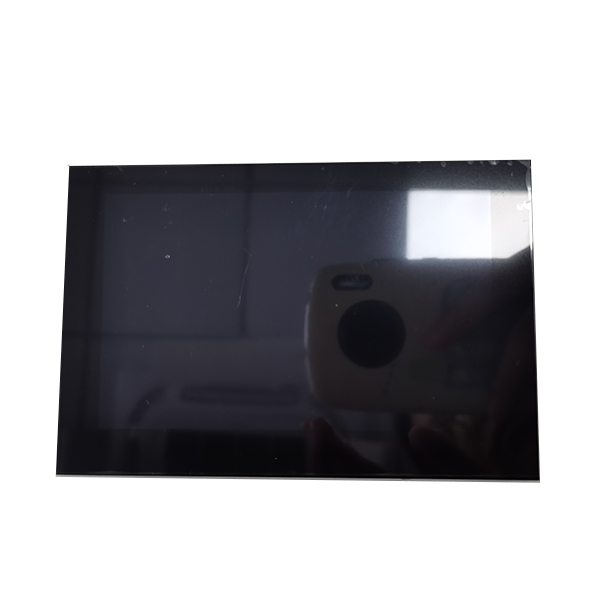

7.0″ inch All 1024*600 LCD display for Smart watch and wearable, medical, Ebike, smart home, hand-held device, industrial, EV charger, Medical

Elsun 7inch IPS/1024*600/RGB/1000nits/-30~+85 supply very stable. This 1.28 inch supports RGBinterface. In addition, the 7.0″inch TFT module brightness is 1000nits, and this 7.0″inch screen is All/Free/Wide viewing angle/IPS type. For the touch part, the 7.0″inch circular display has exsiting capacitive touch, but Elsun also can custom the touch according to customer’s requirements.

The material is RoHS-compliant.



1、Description

ELSUN 7.0″ inch 1024*600 TFT module display supply very stable.

This 7.0″ inch supports RGB interface. enables fast and efficient communication between your Arduino and the display, ensuring smooth data transfer and real-time updates. This interface provides flexibility and compatibility with various Arduino models.

In addition, the 7.0″ inch TFT display module brightness is 1000 nits, and this 7.0″ inch screen is All viewing type. For the touch part, we can also customize capacitive touch and resistive touch according to the customer requirements.



Powered by the EK79001+EK73215 controller, this TFT LCD display delivers exceptional performance and reliability. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, and handheld devices.

Our displays are all RoHS compliant and adhere to strict environmental and safety standards.



2、Feature

1. Bar type display/Round display
2. Stable supply
3. 1000brightness/Sunlight readable/High brightness
4. Wide working temperature -30~85
5. Can custom resistive touch and capacitive touch
6. Medical, hand-held device, industrial



3、Product specification

Item	7inch IPS/1024*600/RGB/1000nits/-30~+85
Model No.	PV07071H0550Y
Resolution	1024*600
Outline Dimension (mm)	164.2*99.3*5.3
Active Area (mm)	154.214*85.92
Viewing Angle	All
Brightness	1000
Interface	RGB
Backlight	3*10LED
Driving IC	EK79001+EK73215
Operating Temperature	-30~85
Storage Temperature	-30~85
Touch screen	Can custom resistive and capacitive touch screen
Application	E-Bike,Medical, hand-held device, industrial，



4、Application

This 7.0″ inch 1024*600 TFT display module can be used for Medical, hand-held device, industrial or Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer.  The wide operating temperature and high brightness characteristics make it widely used in outdoor equipment.

PV07071H0550Y
